PAS24 Aluminium Doors

Our Thermal Commercial Door System has successfully passed the UK PAS24 Security Test.

PAS24 Door

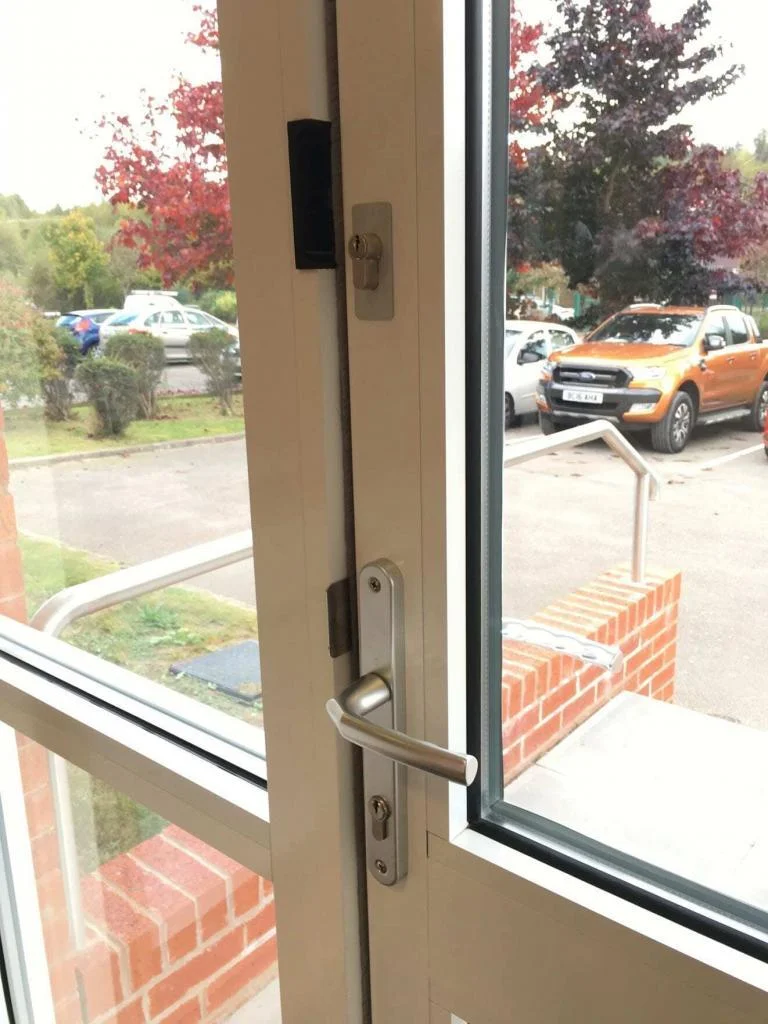

Our PAS24 Commercial Pivot Doors are designed for use as stand alone entrance units or in conjunction with a Thermal Framing System.

Double and single door sets have passed the requirements of PAS24: 2012 with specialist locks and lock cylinders

Specification:

  • Kestrel Thermal Door System
  • Maximum Door Leaf Size: 1100mm W x 2500mm H
  • Pivot System with Concealed Transom Closer
  • Fully DDA Compliant
  • Rounded Stile Finger Guard
  • Full Perimeter Weather & Draught Seals
  • Fully Serviceable

Glass, Glazing and Infil Panels:

  • The system is designed to accept glazing of 28mm to 46mm thickness (insulating glass units or infil panels). Glazing to BS 6262 and BS 6206

Materials:

  • Aluminium profiles are extruded from alloy 6060/6063 T6 complying with the recommendations of BS EN 12020-2: 2008

Finishes:

  • Etched and anodised to BS 3987: 1991.
  • Polyester Powder Coated to BS EN 12206-1:2004.
